Model No.

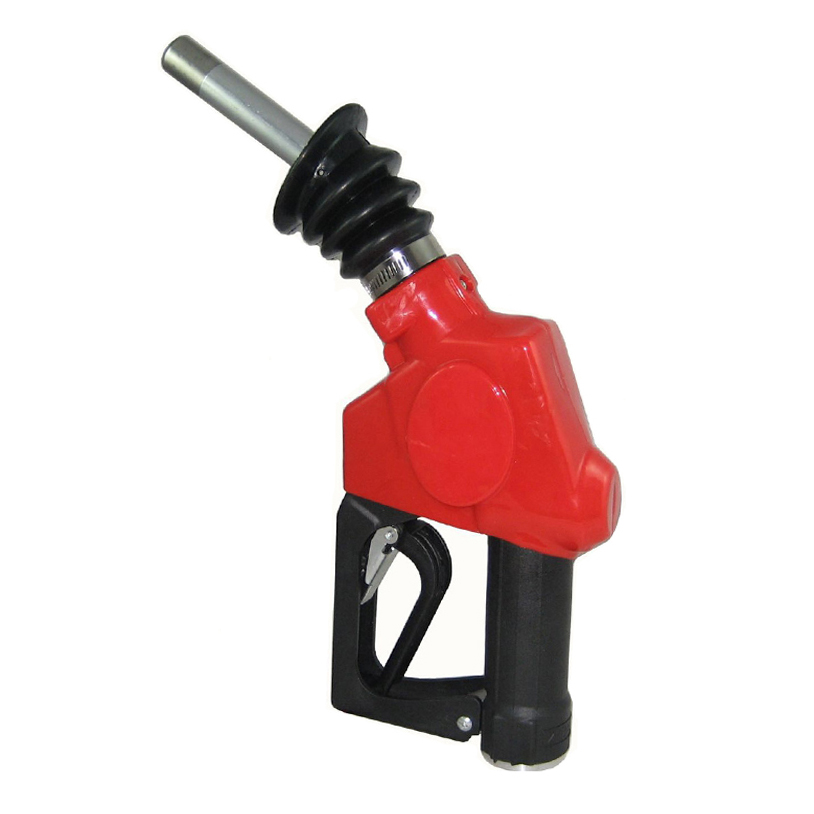

 ZL VR-01 Vapor recovery automatic fuel nozzle

  Inlet Thread

 M34X1.5  /  UNEF 1-1/4"

  Diameter of Spout

 13/16"

  Flow Rate

 0-45L/Min

  Working Pressure

 0.18Mpa

  Color

 Red/Green/Blue/Yellow/Black/Gray/Orange

   Body

 ZL101

   Seals

 NBR70,VITON

   Main Stem

 Stainless Steel

1. The position of inspiratory lay in the higher place near the barrel connecter, which can avoid the case of gun jumping effectively.  The fuel nozzle can work more stable and reliable.

2. The fuel nozzle can use in the case of oil hydraulic, which can prevent the accident of injection.

3. The main valve reverses the oil flow, and enhance the safety factor in the using process.

4. Design of low air resistance and fluid resistance.

5. The fuel nozzle has a sealed hood, which can improve the recovery of oil and gas effectively.

6. The fuel nozzle has a shear groove design, which will fracture sheer groove when encountered refueling accident, so as to protect the tanker effectively.

7. The flow rates similar to the conventional grease fuel nozzle, which can effectively avoid the occurrence of clogging in the refueling peak.

8.The dominant pole structure uses an external that can be adjusted sealing structure. It will be more convenient.

9. It is low-flow and self-styled. The minimum flow can be reached 11L/Min.

10. With the design of separator valve split, it increased the stability of the fuel nozzle. And it is more convenient for installation and maintenance.

11. The gun’s oil line pneumatic separating casting will reduce the casting defects.

12.Optional accessories hydrocarbon shut-off valve using oil open, gas-liquid recycle ratio (A/L) is 0.95:1~1.05:1, which can effectively control the oil and gas emissions, to ensure that no air pollution, to meet international safety and environmental protection requirements.
